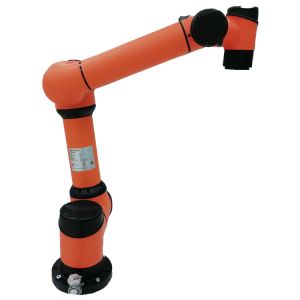

150W Max Payload 3kg Collaborative 6 Axis Robotic Arm

Ask Lasest Price
Brand Name :	AUBO
Model Number :	i3
Certification :	ce EAC
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	999set /month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

150W Max Payload 3kg Collaborative 6 Axis Robotic Arm

Collaborative robot AUBO i3 6 axis low cost high lifetime mini industrial collaborative robot assembly cobot CHINA

Main Specifications
Maximum reach:832 mm
Maximum payload:3kg
Pose repeatability (ISO 9283):± 0.02 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:150W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen

Product Description

Product Name	Collaborative robot AUBO i3 6 axis low cost high lifetime mini industrial collaborative robot assembly cobot CHINA
Application	Collaborative robot AUBO i3 6 axis low cost high lifetime mini industrial collaborative robot assembly cobot CHINA ,main application welding assenbly and stacking ,palletizing collaborative.
Model	Aubo i3
Robot Arm
Maximum reach	832 mm
Maximum payload	3 kg
Pose repeatability (ISO 9283)	± 0.02 mm
Number of axes	6
Mounting position	Floor/ Ceiling/Wall
Lifetime	30000h
Weight	15.5 kg
Protection rating	IP54
Standard	CE, TUV,KSc
Power consumption	150W
Material	Aluminum alloy
Ambient temperature	0-45°C
Environment humidity	20-85%(No condensation)
Power supply	DC 48V
Protocol	CAN bus
A1	±175°
A2	±175°
A3	±175°
A4	±175°
A5	±175°
A6	±175°
Controller
Size	380mm350mm258mm
Weight	15Kg
Cable length	5m
Colour	Black
Protocol	Ethernet,Modbus-RTU/TCP
Power	100-240V/AC,50-60HZ
Protection rating	IP54
I/O port	16 in/16 out
Teach pendant
Size	355mm235mm54mm
Weight	1.57Kg
Screen	12 inch Resistive LCD touch screen
Cable length	4m
Protection rating	IP54
Colour	Orange+black
